Gravity Fed or Hopper Feed Vertical CabinetSmoker Wood Pellet, Charcoal, Chips, Chuns


Inventor's Contact E-mail: sale@allchinas.com Tel No£º(86)13901185127 (China)

Burner ATC WIFI Thermometer Offet Grill Cabinet Smoker Cold Smoke Generator Tent Stove Rotisserie Gallery Sous Vide

Videos tell everything emplicitly:#8:Mini-Smoker,Grilling at 130C, Look the temperature fluctuation . #9:Mini-Smoker,Grilling at 150C, Look the temperature fluctuation . #10: First bird by mini-smoker. 130C for 40 minutes, then 150C for 15 minutes, and finally 170C for 5 minutes. a little bit over heated. #11: How P.I.D thermostat works. #12:Flame To Searing Rib. .#13:Maximun Temp up to 350C .#13:Minimum Temp. at 60C,70C,80 C PART I. #14:Minimum Temp. at 60C,70C,80 C PART II . Smoking Picnic pork at 60C for 3 hours and then 70 C for 7 hours.PART I. PART II smoking at 60C. PART III How temperature is controlled. PART IV temperature rises from 60C to 70C.
Vertical or Cabinet Smoker Mini, made from single wall of stainless steel, gauge 12. Grill size 13.4"X10"X 3 pieces. Total grilling size 402" square inches Effective grilling height 12". Weight 80 BLS. Ex-works US$200.
SAL mail cost door to door is US$150.

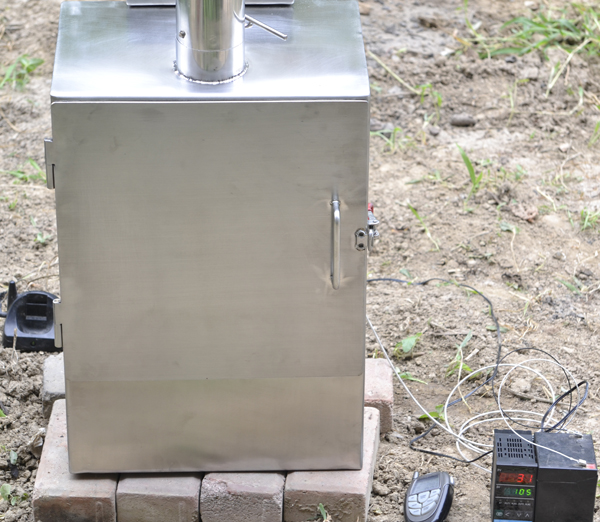

front view

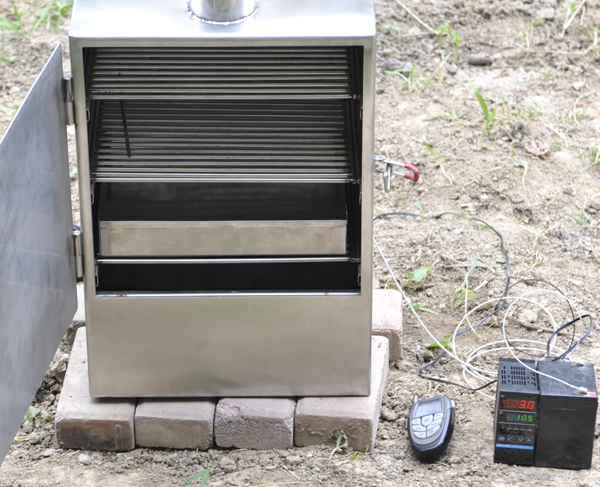

Water Pan Above Fire

Three Grills

side view

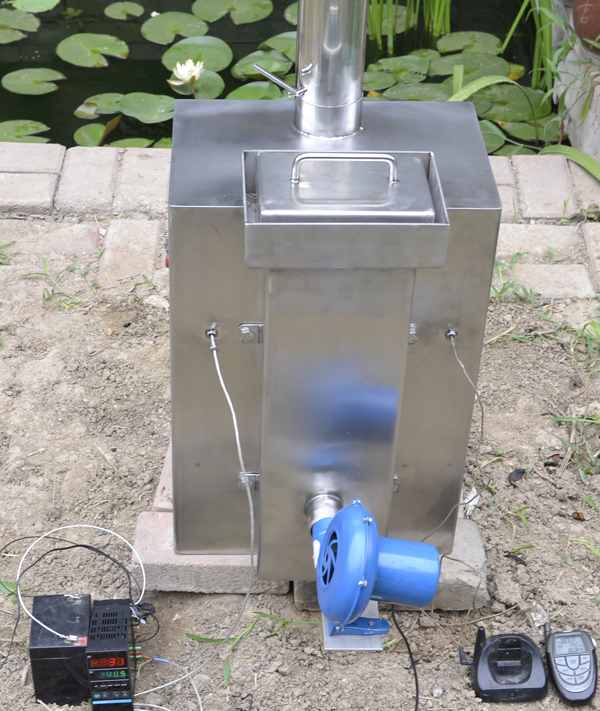

backview

water pan under fire

Vertical or Cabinet Smoker Bronze, made from double walls of stainless steel, gauge 14 and 20. Grill size 16"X16"X 3 pieces, this gives total grilling size of 768" square inches. Effective grilling height 14". Weight 122 BLS. Ex-works US$400.
SAL mail cost door to door to UK and Canada customers is US$200.
Customers from other countries need to pay shipping cost of US$400 for every one to four pieces. and you need to pickup from seaport.

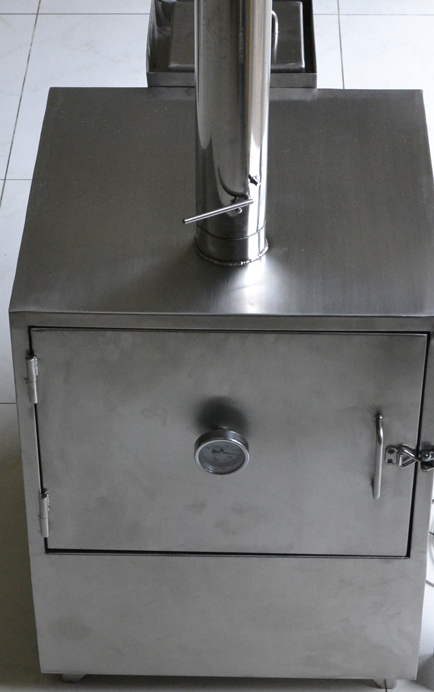

Front view
Width 18"
Height without Flue 24"

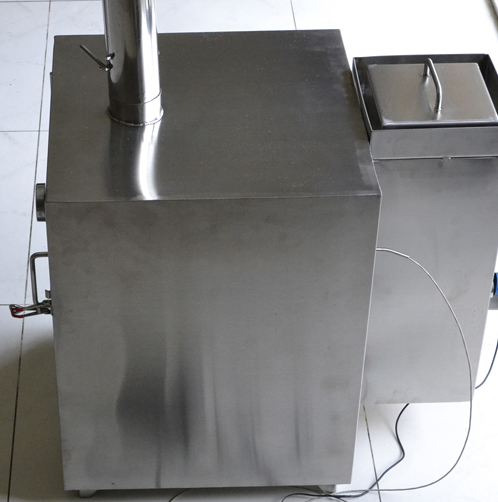

side view
With P.I.D. thermostat

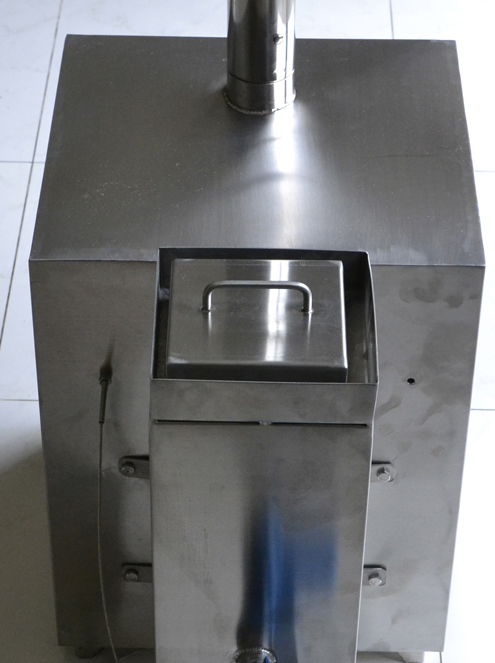

Back view
Two Holes for Temperature Probe

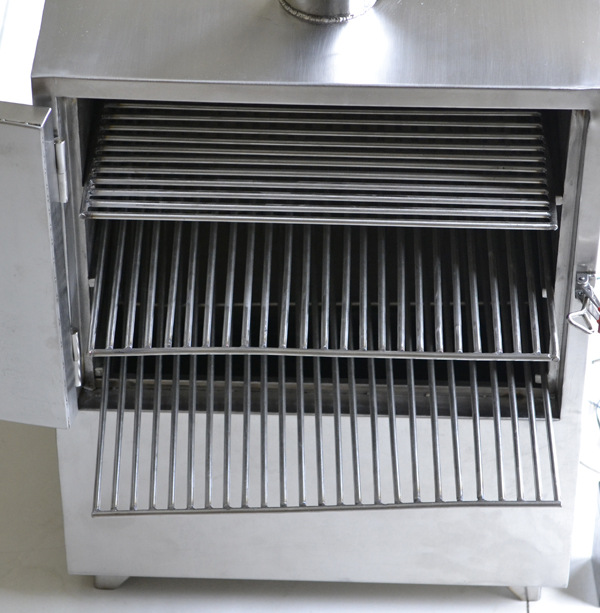

3 grills

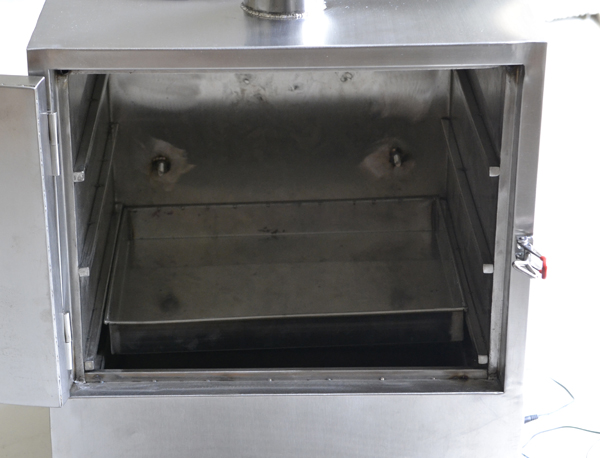

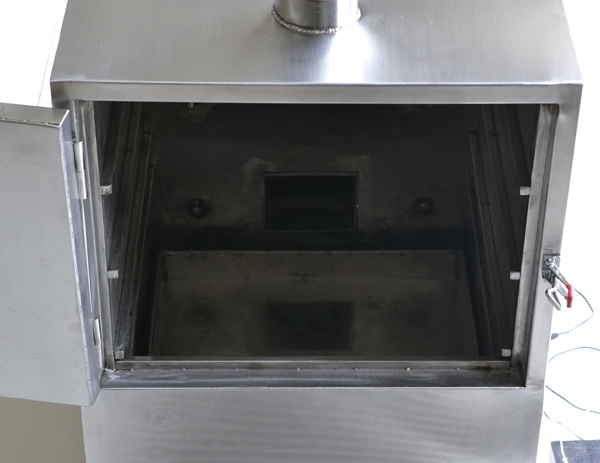

Water Pan above Fire
for low temperature water smoking

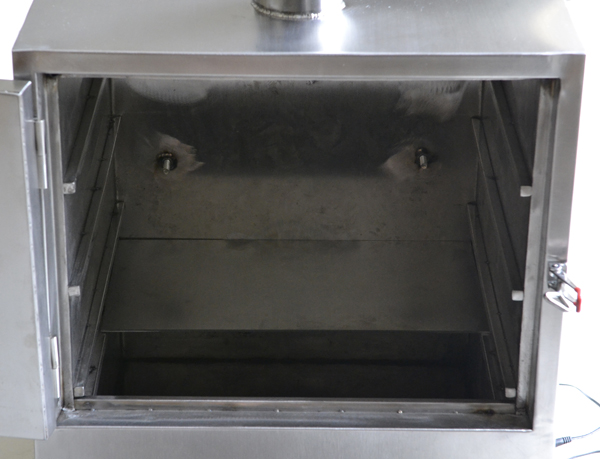

heat reflector
for even heat distribution

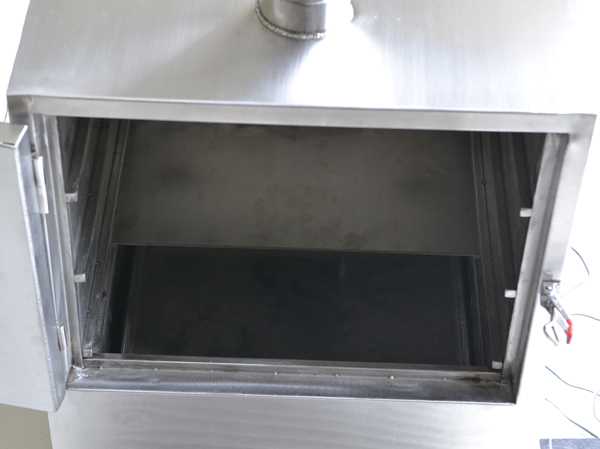

water pan under fire
for high temperature grilling

water pan and fire reflector
